PRODUCTS
-

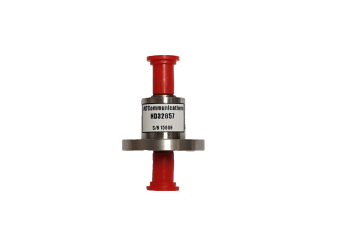

Rotary Joint
HD32857 is a DC-40GHz single channel rotary joint
- Insertion loss: 1 dB Typ.
- Power: 1KW
- Connectors: K (m-f)
-

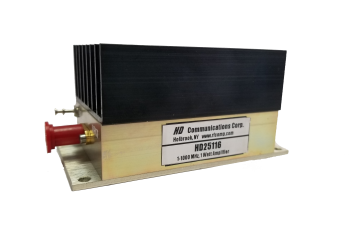

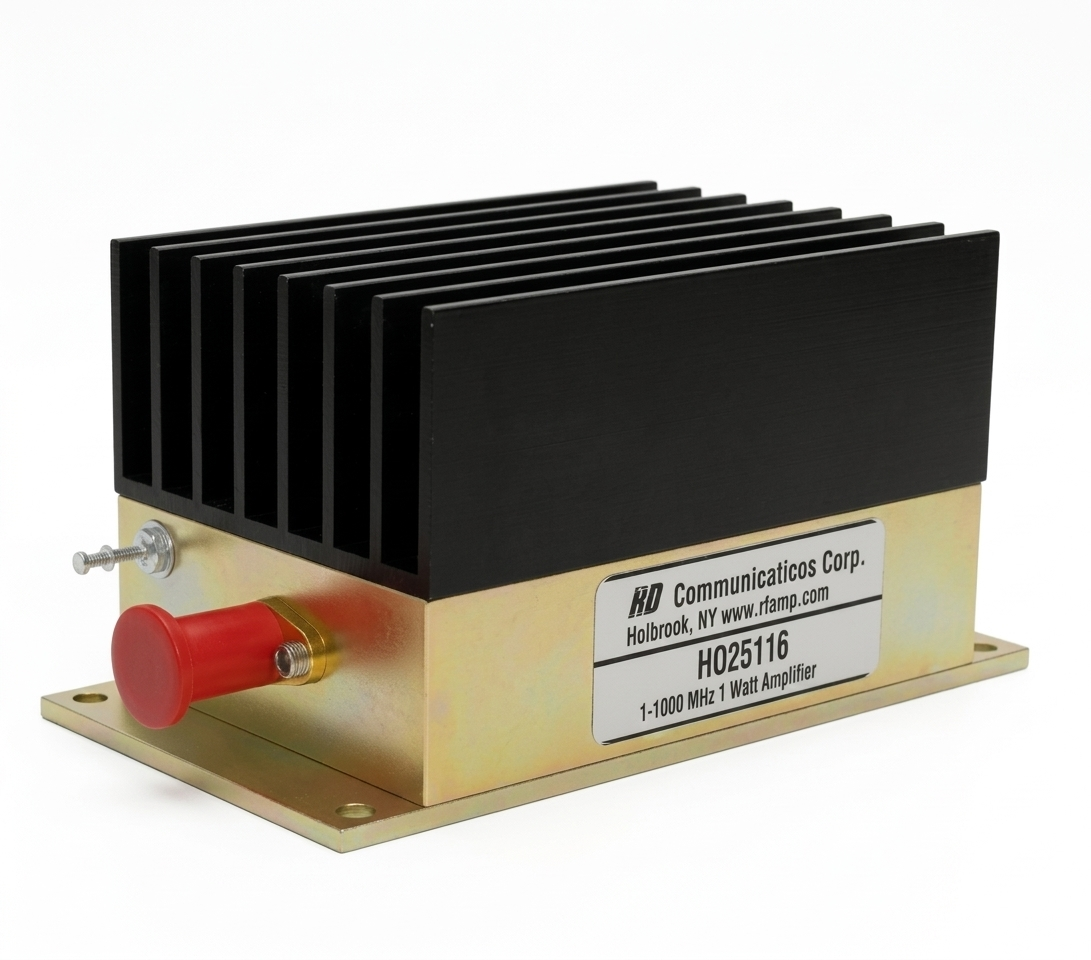

Medium Power Amplifier
HD25116 is a 40dB gain, +30dBm (1 Watt) output medium power RF amplifier, operating at a frequency range of 1-1000MHz with a single 12V power supply
- Frequency range: 1-1000MHz
- Gain: 40dB
- P1dB: +30dBm
- IP3: +40dBm
- Noise figure: 3.3 dB
- DC power: 12V
- SMA connector
-

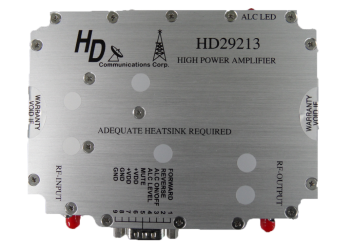

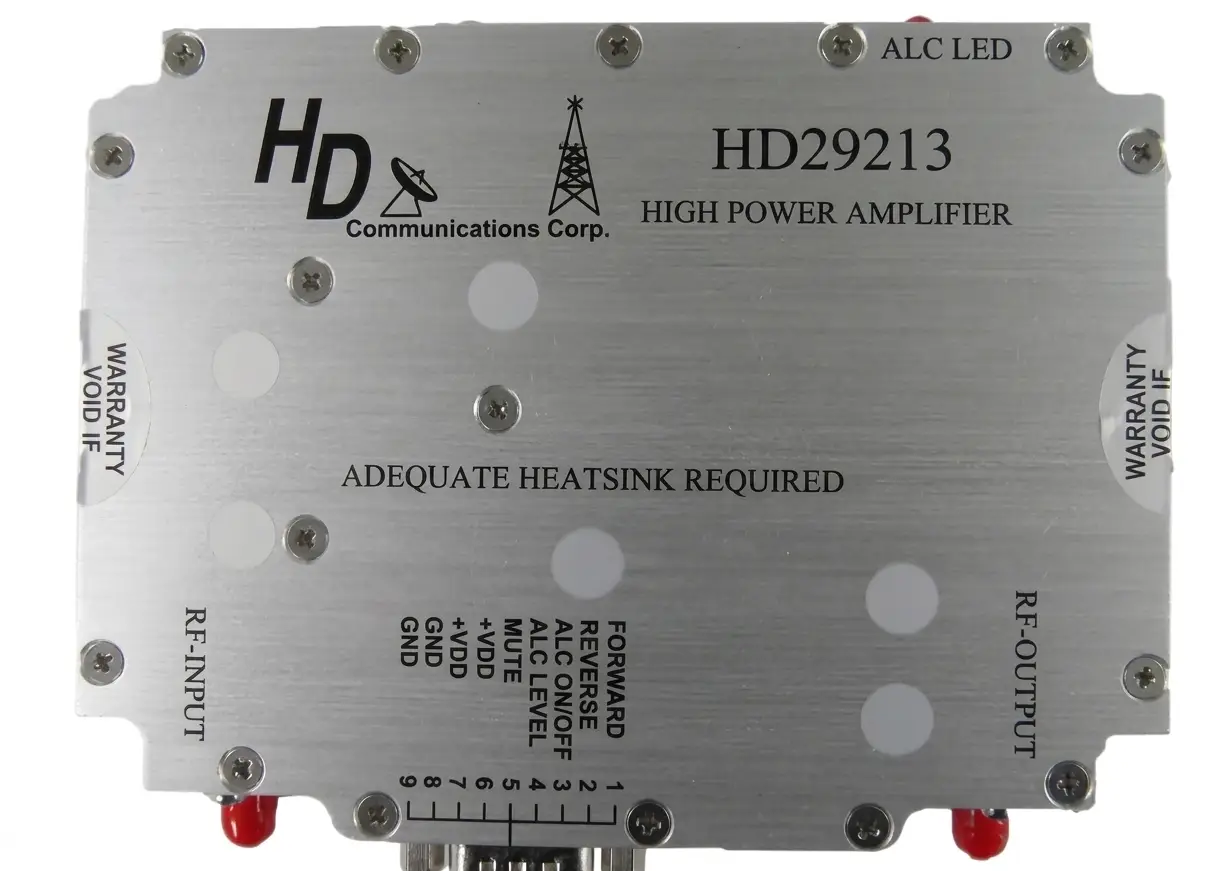

TETRA Band Amplifier
HD29213 is a solid state communication power amplifier suitable for CW, SMR, and TETRA applications.
- Frequency: 400-485MHz
- Output power @P1dB: 25W
- Small signal gain: 46dB
- Operating voltage: 28V
-

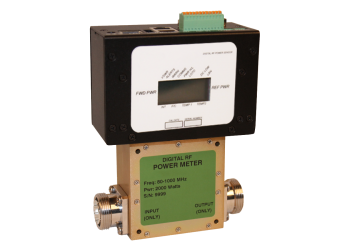

Power meter
WPM11072 is a power meter featuring Instantaneous and simultaneous RF Power monitoring, VSWR alarm, temperature monitoring (with alarm)
- Frequency: 80-1000MHz
- Power: 2000W CW
- Connector: 7/16 Female
-

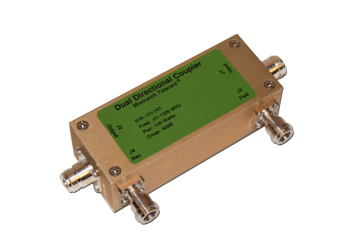

Dual Directional Coupler
C2630 is a 4-port Dual Directional Coupler featuring high power, wide bandwidths, small size, flat coupling, and custom designs are available
- Frequency: 0.01-1000MHz
- Power: 100 W CW
- Coupling: 40 +/- 1.0 dB
- Insertion loss: 0.6 dB max
- Flatness: +/- 0.5 dB max
- VSWR (ML): 1.30:1 max
- Directivity: 20 dB min.
-

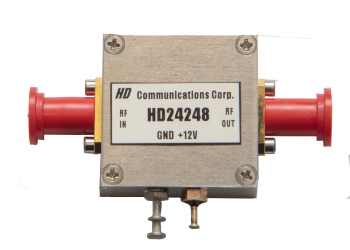

Low Noise Amplifier
HD24248 is a wideband Low Noise Amplifier that operates with a frequency range usable from 100KHz to 2500MHz
- Frequency Range: 0.1-2500MHz
- Gain: 25dB
- P!dB: +1dBm
- IP3: +8dBm
- Noise Figure: 2.4dB
- DC power: 12V
- SMA connector
